Applications

Built for Precision, Performance, and Reliability

The MX100 LPBF printer is designed for users who need accurate metal 3D printing in a compact, accessible system. It supports detailed part development, material research, and low-volume production where print quality, repeatability, and workflow efficiency matter.

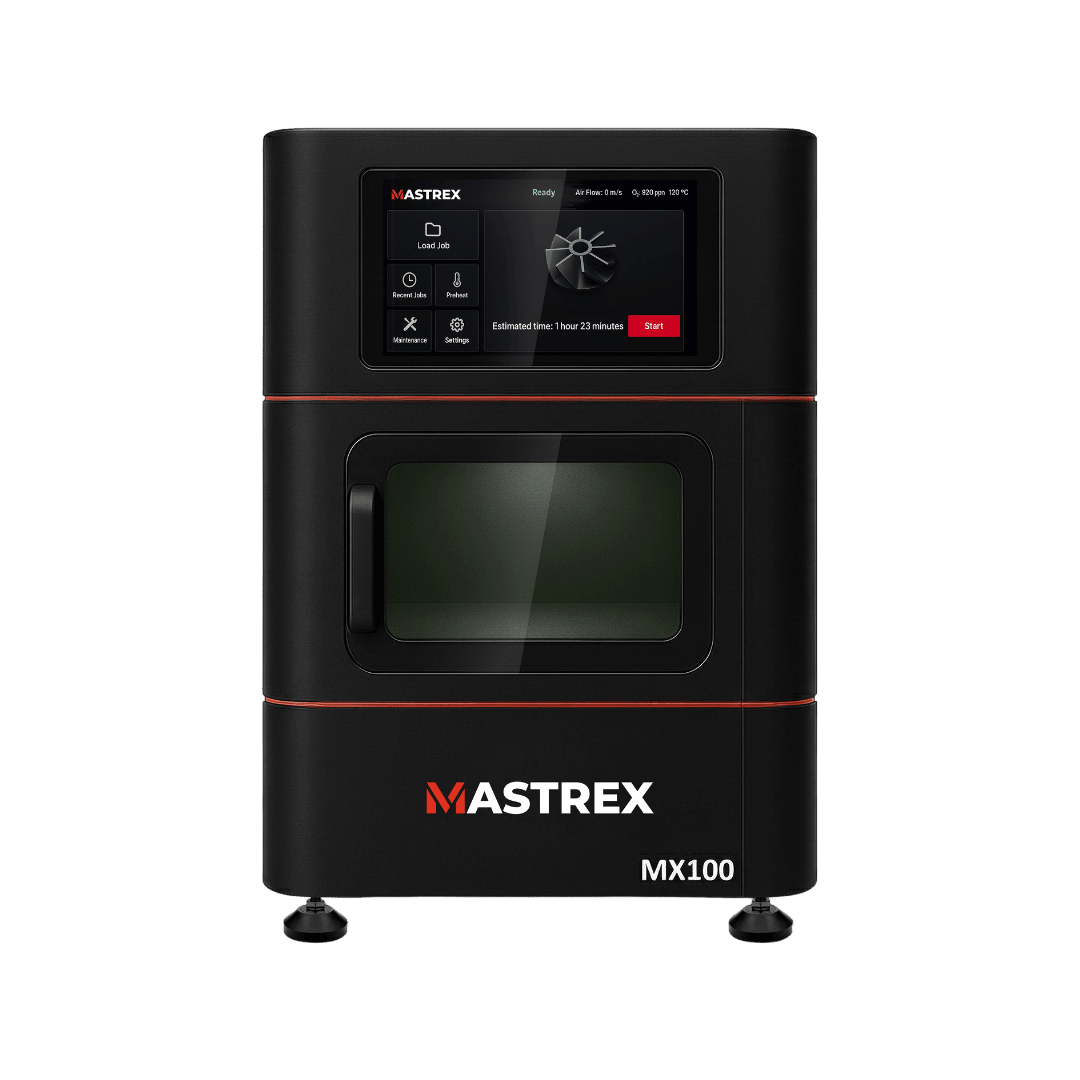

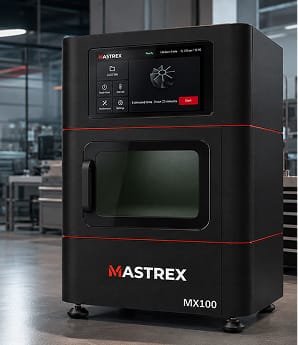

MX100

Research

Support material development, process validation, and applied metal printing research with precise LPBF capability.

Education

Bring industrial metal 3D printing into academic and training environments with a desktop-sized system built for hands-on learning.

Prototyping

Produce detailed metal prototypes with strong surface quality and fine feature resolution for faster design iteration.

Small-Batch Production

Handle low-volume metal part production with a compact metal 3D printer designed for repeatable output.
Capabilities

Why Manufacturers Choose the MX100

The MX100 LPBF printer combines desktop accessibility with the precision and performance expected from industrial metal 3D printing. Built for users who need fine detail, strong surface quality, and repeatable output, it brings high-performance LPBF capability into a compact format.

Four arrows pointing outward (expansion icon)

Desktop-Sized LPBF System

A compact metal 3D printer built to bring Laser Powder Bed Fusion capability into smaller labs, workshops, and technical environments.

High-Precision Part Quality

Powered by a 300 W laser and a 35 to 60 um beam diameter, the system delivers fine detail, tight tolerances, and strong surface finish for demanding metal printing applications.
Illustration of a rising bar chart

Accessible Metal Printing Workflow

Combines intuitive operation with practical day-to-day usability, making advanced metal 3D printing easier to adopt and run.
Request a Quote
Specifications

Technical Details for the MX100

The MX100 brings industrial-grade LPBF metal 3D printing to the desktop in a compact, high-precision system. With a 300 W laser and a 35 to 60 um beam diameter, it delivers the control and print quality needed for prototyping, research, small-batch production, and educational environments.
  • Build Volume
    100 x 100 x 80 mm (XYZ)
  • Laser Power
    300 W
  • Layer Height
    20–60 µm
  • Print Technology
    Laser Powder Bed Fusion
  • Supported Materials
    Titanium, stainless steel, aluminum, cobalt-chromium, copper alloys and more
  • Max Build Rate
    18 cm³/h
  • Laser Beam Diameter
    35-60µm
  • Dimensions
    560 x 560 x 800mm
  • Weight
    125KG
  • Voltage
    120V

Proven Reliability

The MX100 LPBF printer is built for users who need dependable metal 3D printing performance, consistent part quality, and practical day-to-day usability. From research environments to prototype development, it delivers reliable LPBF capability in a compact system built for real technical work.
